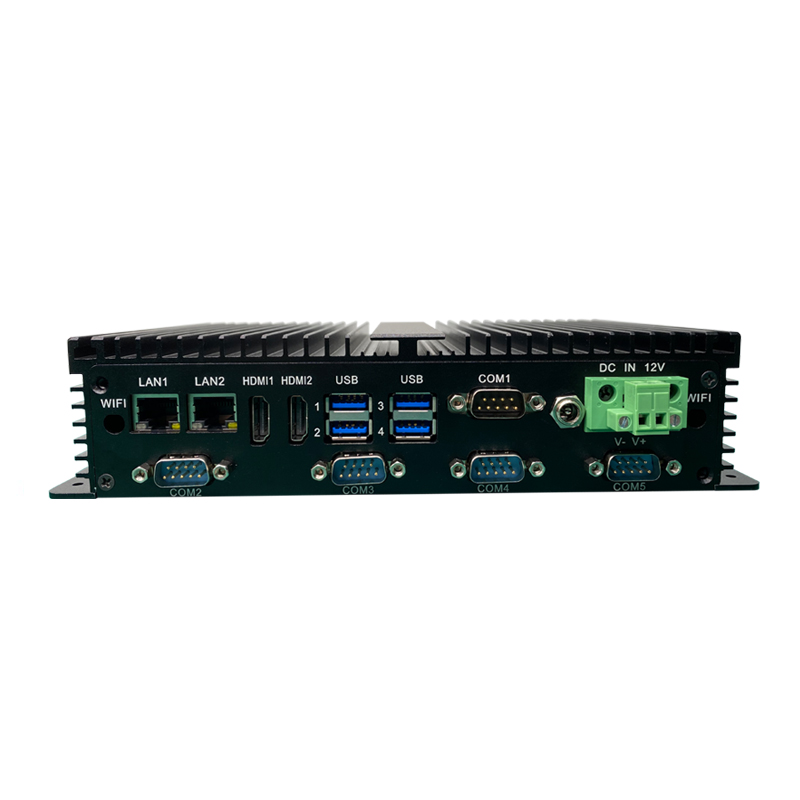

LX-BG-856_Shenzhen Lianxiang Hai'an Technology Co., Ltd.

Intel Core i7-8565U processor, 6*COM, up to 11 * USB, 2 * LAN, 3 * m.2, 2 * HDMI, 1 * LVDS/EDP

With Intel Whiskey Lake Core i7-8565U processor

Back-mounted CPU is more suitable for overall cooling design without fan.

2*Intel Gigabit Internet port, 6*COM, up to 11*USB

2*HDMI, 1*LVDS/eDP, supporting triple display

3*M.2 Support SATA, Wifi/BT, 4G/5G

3.5 inch, DC 12V power supply

Specification

Processor: Intel 8th Core TM i7-8565U, quad-core, up to 4.6GHz, TDP 15W

Features: 2 * HDMI,+1 * LVDS/EDP

Memory: DDR4-2400, 1*SO-DIMM, up to 16 GB

Features: 2 * Intel 1gbps PCIe Ethernet controller, RJ45

Function: 1*SATA 3.0, 1 * M.2 (key-m, 2242/2280, PCIe x4/SATA SSD)

Main board interface: 4*RS232, 2*RS232/RS485, 4*USB 3.0, 5/7*USB 2.0, 2*HDMI, 1*LVDS/eDP, 2 * Intel 1gbps PCIe Ethernet controller, RJ45.

Main machine size: length, width and height: 222cm×137cm×52cm

Working temperature: -20℃~75℃

Input voltage: DC 12V 5A

Standard power supply: 60W
